Categories: Milling machine

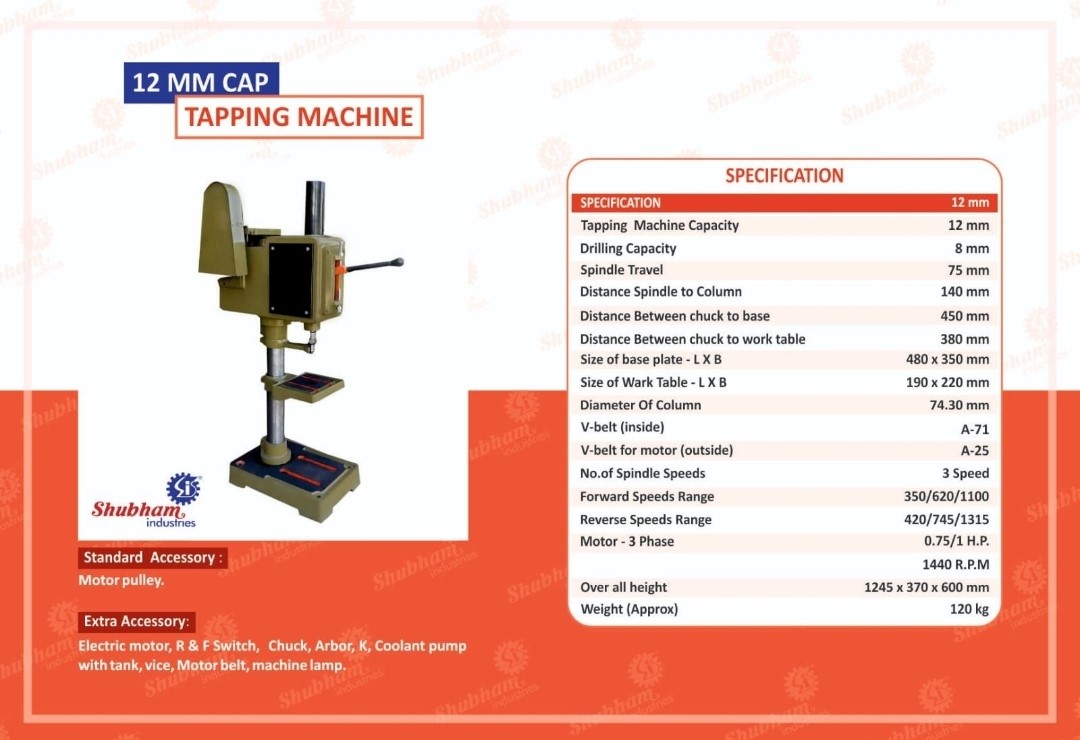

Enquiry Now| Specification | 12 MM |
|---|---|
| Tapping Machine Capacity | 12 mm |
| Drilling Capacity | 8 mm |
| Spindle Travel | 75 mm |
| Distance Spindle to Column | 140 mm |
| Distance Between chuck to base | 450 mm |
| Distance Between chuck to work table | 380 mm |
| Size of base plate - LX B | 480 x 350 mm |
| Size of Wark Table - LX B | 190 x 220 mm |
| Diameter Of Column | 74.30 mm |
| V-belt (inside) | A-71 |
| V-belt for motor (outside) | A-25 |
| No.of Spindle Speeds | 3 Speed |
| Forward Speeds Range | 350/620/1100 |
| Reverse Speeds Range | 420/745/1315 |
| Motor-3 Phase | 0.75/1 H.P. | 1440 RPM |
| Over all height | 1245 x 370 x 600 mm |
| Weight (Approx) | 120 kg |
