Categories: Drill machine

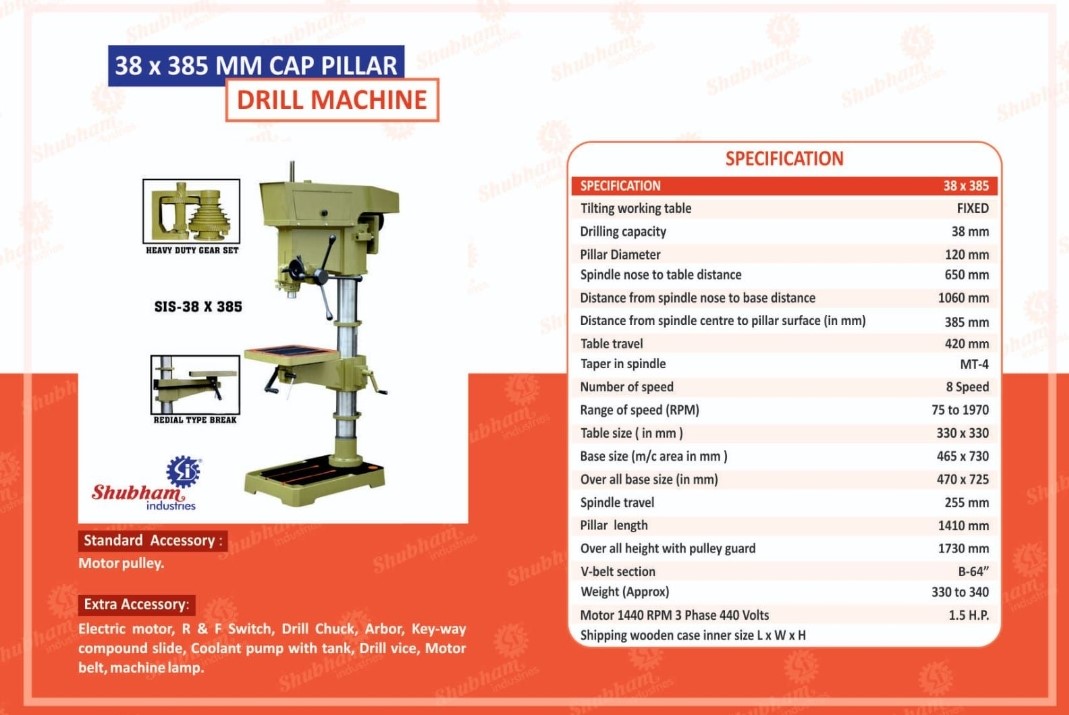

Enquiry Now| SPECIFICATION | 38 x 385 |
|---|---|
| Drilling capacity | 38 MM |
| Pillar Diameter | 120 MM |
| Spindle nose to table distance | 650 MM |
| Distance from spindle nose to base distance | 1060 MM |
| Distance from spindle centre to pillar surface (in mm) | 385 MM |
| Table travel | 420 MM |
| Taper in spindle | MT-4 |
| Number of speed | 8 Speed |
| Range of speed (RPM) | 75 to 1970 |
| Table size (in mm) | 330 x 330 |
| Base size (m/c area in mm) | 465 x 730 |
| Over all base size (in mm) | 470 x 725 |
| Spindle travel | 255 MM |
| Pillar length | 1410 MM |
| Over all height with pulley guard | 1730 MM |
| V-belt section | B-64" |
| Weight (Approx) | 330 to 340 |
| Motor 1440 RPM 3 Phase 440 Volts | 1.5 H.P. |
