Categories: Drill machine

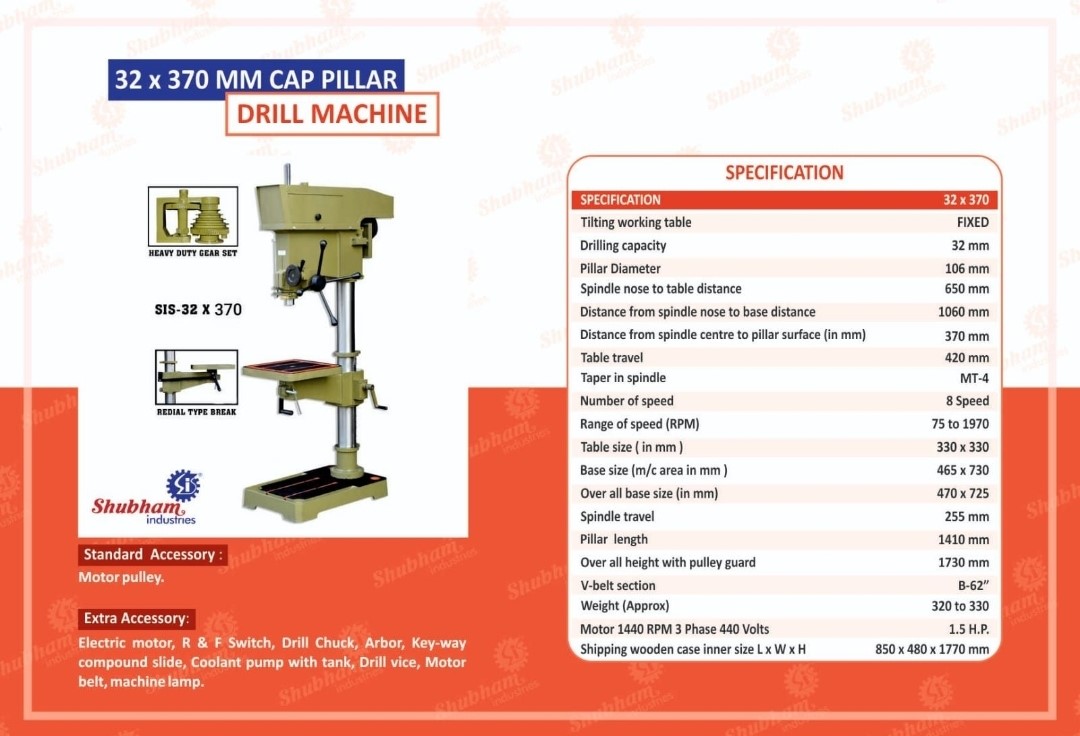

Enquiry Now| SPECIFICATION | 32 x 370 |
|---|---|
| Tilting working table | FIXED |
| Drilling capacity | 32 mm |
| Pillar Diameter | 106 mm |
| Spindle nose to table distance | 650 mm |
| Distance from spindle nose to base distance | 1060 mm |
| Distance from spindle centre to pillar surface (in mm) | 370 mm |
| Table travel | 420 mm |
| Taper in spindle | MT-4 |
| Number of speed | 8 Speed |
| Range of speed (RPM) | 75 to 1970 |
| Table size (in mm) | 330 x 330 |
| Base size (m/c area in mm) | 465 x 730 |
| Over all base size (in mm)Q | 470 x 725 |
| Spindle travel | 255 mm |
| Pillar length | 1410 mm |
| Over all height with pulley guard | 1730 mm |
| V-belt section | B-62" |
| Weight (Approx) | 320 to 330 |
| Motor 1440 RPM 3 Phase 440 Volts | 1.5 H.P. |
| Shipping wooden case inner size L x W x H | 850 x 480 x 1770 mm |
