Categories: Milling machine

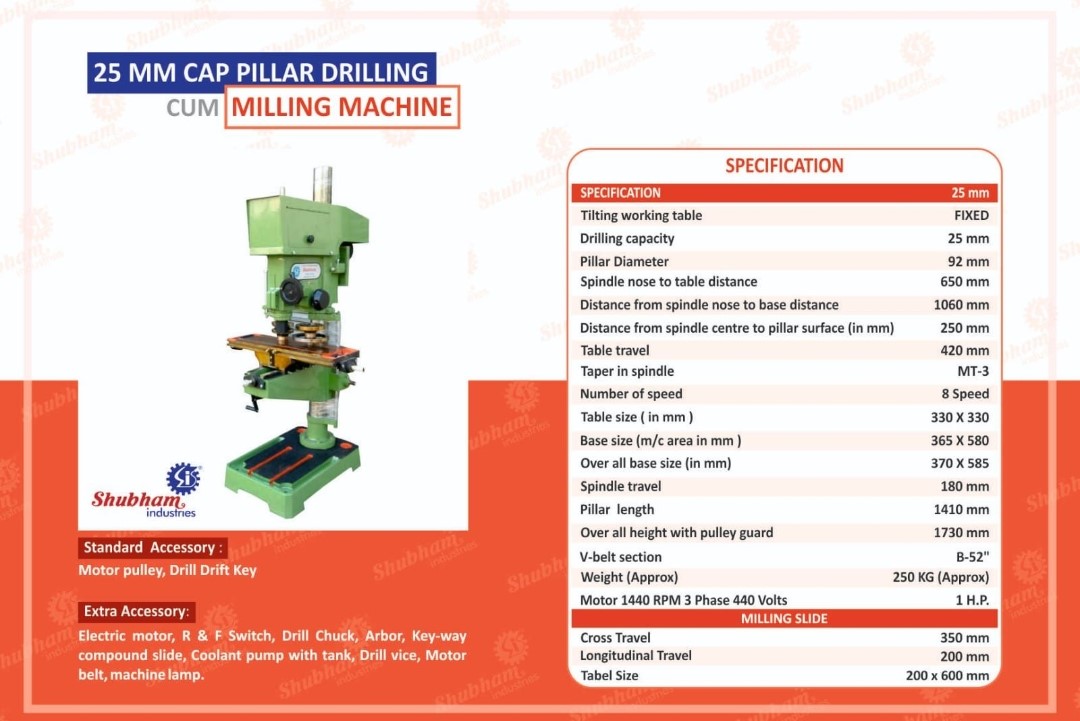

Enquiry Now| Specification | 25 MM |
|---|---|
| Tilting working table | FIXED |
| Drilling capacity | 25 MM |
| Pillar Diameter | 92 MM |
| Spindle nose to table distance | 650 M |
| Distance from spindle nose to base distance | 1060 MM |
| Distance from spindle centre to pillar surface (in mm) | 250 MM |
| Table travel | 420 MM |
| Taper in spindle | MT -3 |
| Number of speed | 8 SPEED |
| Table size (in mm) | 330 X 330 |
| Base size (m/c area in mm) | 365 X 580 |
| Over all base size (in mm) | 370 X 585 |
| Spindle travel | 180 mm |
| Pillar length | 1410 mm |
| Over all height with pulley guard | 1730 mm |
| V-belt section | B-52" |
| Weight (Approx) | 250 KG (Approx) |
| Motor 1440 RPM 3 Phase 440 Volts | 1H.P. |

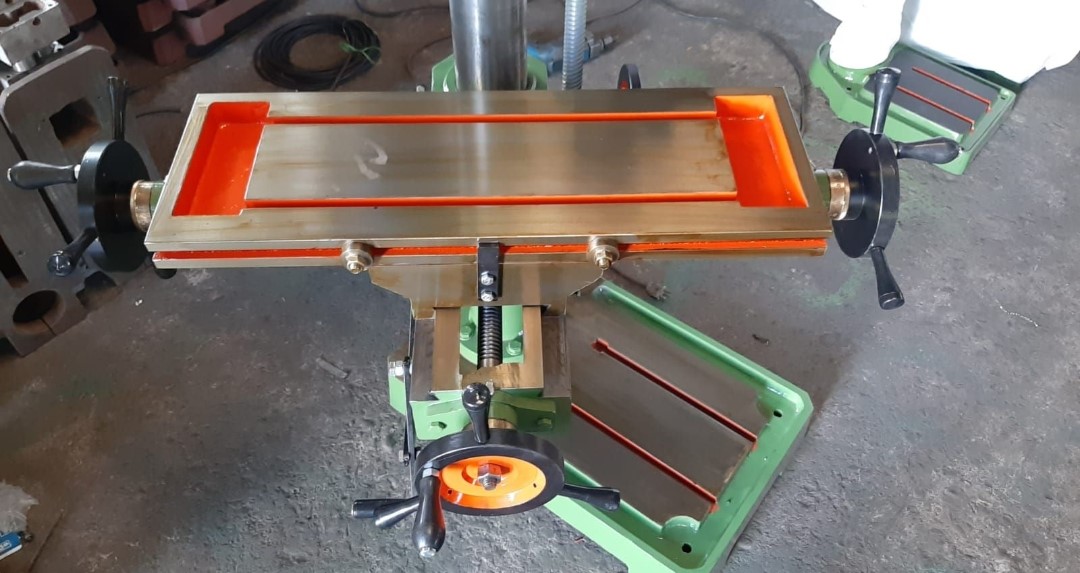

| Cross Travel | 350 mm |
| Longitudinal Travel | 200 MM |
| Tabel Size | 200 x 600 mm. |
